Pegasus ⁄⁄ S4

Building on 15 years of innovation, the Trimax Pegasus was refined and re-released in 2017. The result – Pegasus Series 4, which offers 15% less grease points and an incredible 35% less in maintenance costs.

The Benchmark in Wide Area Mowing.

After 15 years leading the market, the Trimax Pegasus has established itself as the benchmark in wide-area mowing for parks, reserves, airports, racetracks, sport fields and turf farms.

Available in 4.9m, 6.1m and 7.2m widths, the Pegasus S4 is an exceptionally low-maintenance trailed rotary mower. With the number of grease points reduced and the introduction of Trimax SteadFAST Sealed Spindles and LocTEK Stubless Rollers, maintenance costs have never been so low.

New for 2020 is the Trimax Drive Protect System which is fitted to all Pegasus lift options as standard. Fully electronic, it features built-in sensors to prevent the mowing decks from lifting in unsafe conditions, or until the blades have ceased spinning.

View for yourself the benefits of Trimax Pegasus by booking a free demonstration today.
Book a Demo
Download a catalogue

PEGASUS ⁄⁄ S4 Features.

The below features come as standard on all Pegasus S4 mowers:

Pegasus S4 Red
Pegasus-S4
Pegasus-S4 Red
Pegasus S4 mower

STEADFAST SPINDLES

With no spindle greasing required maintenance is extremely low and productivity enhanced.

Full Width Rollers

FULL WIDTH ROLLERS

Full width front and rear rollers follow contours and provide excellent anti-scalp protection.

LazerBladez

LAZERBLADEZ

Achieves a superior cut and finish and are more cost efficient than cylinder reels or solid blade beams.

Rear rollers

ROAD SAFETY FEATURES

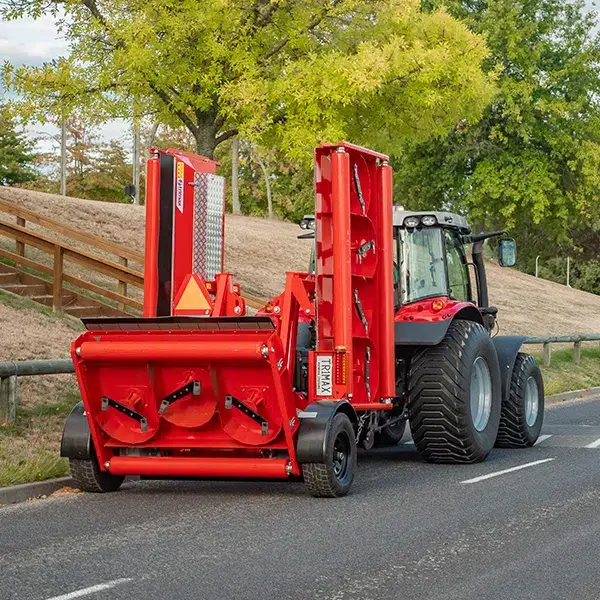

Comes with towing safety chains, mudguards and LED lights for road transport.

Rear rollers

SUSPENSION

The Pegasus is fitted with a Duratorque Suspension System capable of highway speeds.

LocTEK

BELT CAVITY DUAL WASH FLAPS

Provides easy access for removal of grass and drainage of water from belt cavities.

Pegasus S4 Red
Pegasus-S4
Pegasus-S4 Red
Pegasus S4 mower
LazerBladez

RAPIDSET HEIGHT ADJUSTMENT

Clearly displayed cut height indicators allow for simple and easy alteration or resetting of cut heights.

3 Year Warranty

3 YEAR WARRANTY

We build mowers that last and they’re supported with a 3 year industry leading warranty.

LocTEK

LOCTEK

A stubless roller retention system for vastly improved alignment, bearing life and replacement ease.

Rear rollers

LOW MAINTENANCE

We’ve reduced grease points by 15%, and maintenance costs by 35% compared to the Trimax Pegasus S3.

Rear rollers

WHEELS RUN ON CUT GRASS

The rear deck is located between the transport wheels so grass is not flattened prior to mowing.

Pegasus⁄⁄ S4 Options.

Features Icons_QuikLIFT

QUIKLIFT

Enables mower decks to be raised slightly to traverse paths without disengaging the PTO. Protects cool season grass from damage when turning and allows effective striping of turf. Fitted with Drive Protect for machinery protection and bystander safety. (Not currently available on Pegasus 722).

Features Icons_MultiLIFT

MULTI LIFT SYSTEM

The MultiLIFT System (MLS) is a combination of QuikLIFT and IndividualLIFT with the addition benefit of BiLIFT (rear deck only mowing) for narrow gateways and driveways. Fitted with Drive Protect and timed blade spin down for machinery protection and bystander safety. (Not currently available on Pegasus 722). Click here to learn more about MLS.

Features Icons_Anti Bounce Skids

ANTI-BOUNCE SKIDS

Ideal for high speed mowing, the Anti-Bounce Skids reduce the ‘scalping’ effect when mowing on turf which is uneven. Helps to ease the mower over humps between the front and rear rollers.

Features Icons_Electric Brakes

ELECTRIC BRAKES

Electric Brakes reduce braking force needed from the tractor and include an adjustable brake controller with proportional boost for improved performance. The brakes can also be de-activated while moving.

Features Icons_Spare Tyre

TURF TYRES

Trimax Turf Tyres help distribute the weight of the mower for less ground disturbance. Recommended for Turf Farms or fine turf applications. Turf tyres are not suitable for road transport.

Features Icons_Galvanized

GALVANIZED

Hot-Dip Galvanizing provides added protection against corrosion. This is especially useful in coastal environments with high salt concentrations and applications with high fertiliser usage. (Not currently available on Pegasus 493.)
Features Icons_Roller Scrapers

ROLLER SCRAPERS

Trimax Helical Scrapers operate with reduced tension but apply a constant pressure across the roller to assist with the cleaning of debris.

Features Icons_Remote Unlock

REMOTE UNLOCK

The Remote Unlock option replaces the standard transport lock release rope with an electric actuator. This is operated by a push button within the tractor cab.

Features Icons_Safety Storage Kit

Road Registration Lighting Kit

Add a light pole with flashing beacon, number plate light and clearance lights, allowing for road registration. (Please check your State for compliance requirements).

Features Icons_Quattro

QUATTRO BLADE SYSTEM

This system adds 2 more blades to each spindle (2 flat & 2 upturned) for a finer cut on warm season grasses.

Features Icons_Spare Tyre

SPARE TYRE KIT

An easy and convenient mounting kit for attaching a spare tyre to the mower.

SPECIFICATIONS.

Cutting Width 4926 mm (194″) No. of Blade Spindles 9
Overall Width 5082 mm (200″) Approx Weight 2200 kg
Width (Transport Mode) 2500 mm (98″) Minimum PTO Output 60 hp
Overall Length 4375 mm (172″) Warranty (Years) 3
Cut Height Range 10-100 mm(⅜” – 4”)
Cutting Width 6074mm (239”) No. of Blade Spindles 11
Overall Width 6230mm (245”) Approx Weight 2429 kg
Width (Transport Mode) 2500mm (98”) Minimum PTO Output 65 hp
Overall Length 4375 mm (172”) Warranty (Years) 3
Cut Height Range 10-100 mm(⅜” – 4”)
Cutting Width 7235mm (285″) No. of Blade Spindles 13
Overall Width 7366mm (290″) Approx Weight 2700kg
Width (Transport Mode) 2500mm (98″) Minimum PTO Output 70 hp
Overall Length 4375mm (172″) Warranty (Years) 3
Cut Height Range 10-100 mm (⅜” – 4”)
