Snake ⁄⁄ S2
The Snake has been designed specifically for sports turf and golf courses. We’ve seamlessly combined our world-class cut quality and articulation capabilities, and believe we’ve created the best sports turf rotary mower in the world.
SNAKE SERIES 2 – BUILDING ON GREATNESS.
The Trimax Snake is an accumulation of over 35 years of innovation, engineering, and customer insight. Today the Trimax Snake can be found on some of the world’s most prestigious golf courses.
Suitable for compact tractors the Snake has been designed specifically for sports turf and golf courses. We’ve seamlessly combined our world-class cut quality and added articulation capabilities never seen before on a Trimax mower.
Studied by the Sports Turf Institute of New Zealand, the Trimax Snake cutting system produces a cut quality with a similar appearance to that of a cylinder mower, but with the added versatility and reliability of our famous rotary design.
The Snake Series 2 features improvements such as the Trimax LocTEK Roller Retention System reduced maintenance and is now also available in both 3.2m and 4m cut widths. Trimax Snake owners also benefit from an industry-leading 3-year warranty. Built for agility, and incredibly robust, the Trimax Snake S2 won’t fail to impress.
Find out for yourself and book a free demonstration of the Snake S2 today.
Has dedicated machinery become too expensive? Time to change your thinking?
These courses purchased a Trimax Snake and a tractor for the same price, or less, than a self-contained unit. Hear what they have to say about the results.
Snake⁄⁄ S2 Features.
The below features come as standard on all Snake S2 mowers:
EASY HEIGHT ADJUSTMENT
Clearly displayed stainless steel height indicators allow for easy adjustment of cut heights.
ARTICULATION ABILITY
With three articulating decks the Snake has the ability to follow contours with minimal scalping.
LAZERBLADEZ
Achieves a superior cut and finish and are more cost efficient than cylinder reels or solid blade beams.
AUTOMATIC BELT TENSIONERS
Eliminates the need for belt adjustments and improves drive to the spindles and blades.
ZERO TURN
Allows continuous cutting while turning sharply for maximum productivity.
IN-CAB UNLOCK SYSTEM

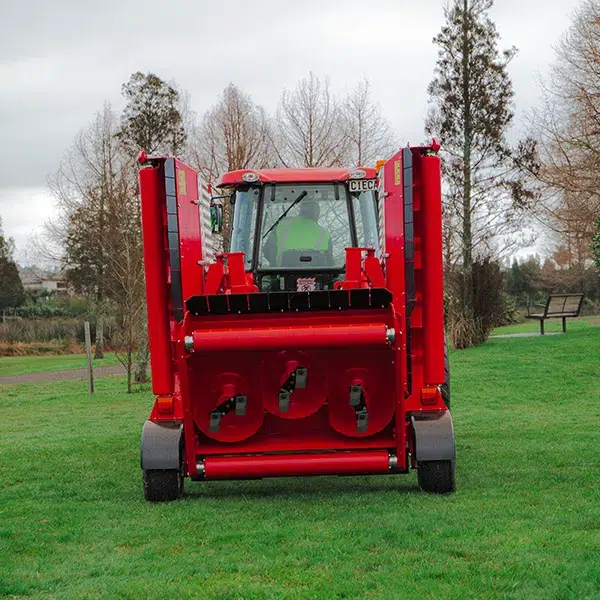

Unlock the mower wings’ transport lock from the convenience of the tractor seat using a release rope.
LOCTEK ROLLER BEARING RETENTION SYSTEM
A stubless roller retention system for vastly improved alignment, bearing life and replacement ease.
3 YEAR WARRANTY
We build mowers that last and they’re supported with a 3-year industry-leading warranty.
FULL-WIDTH ROLLERS
Full-width front and rear rollers follow contours and provide excellent anti-scalp protection.
LOW MAINTENANCE
Maintenance-free pivot bushes and SteadFast Sealed Spindles which don’t require greasing.
QUIKLIFT
Enables mower decks to be raised without disengaging the PTO to traverse driveways, paths and curbs.
Snake⁄⁄ S2 Options.
ROLLER SCRAPERS
Trimax Helical Scrapers operate with reduced tension but apply a constant pressure across the roller to assist with the cleaning of debris.
NEXABLADES
Scientifically designed for high-end turf giving a superior cut and spread when it matters most.
ROAD RATED TYRE
MUDGUARDS, LIGHTS AND CHAINS
Add LED tail light clusters, safety chains, and transport wheel mudguards for road transportation.
ELECTRIC UNLOCK
Replaces the standard in-cab transport lock release rope with an electric actuator. This is operated by a push-button remote.
MULTI-LIFT SYSTEM
The MultiLIFT System (MLS) is a combination of QuikLIFT and IndividualLIFT with the additional benefit of BiLIFT (rear deck-only mowing) for narrow gateways and driveways. Fitted with Drive Protect and timed blade spin-down for machinery protection and bystander safety.
ANTI-BOUNCE SKIDS
Ideal for high speed mowing, Anti-Bounce Skids reduce the ‘scalping’ effect when mowing on uneven turf. Helps to ease the mower over humps between the front and rear rollers. (Currently unavailable on the ProCut 210 model).
TRIMAX CONNECT
A free app available for Trimax Multi-Lift System customers. Allows bluetooth mower connection to track mow hours, manage key service activity or control MLS functionality.
MULCH KIT
SPECIFICATIONS.
|
Cutting Width |
3.23m (10′ 7″) |
No. Of Blade Spindles |
9 |
|
Overall Width |
3.37m (11′ 1″) |
Approx. Weight |
1250kg (2756lbs) |
|
Overall Length |
3.5m (11′ 6″) |
Minimum PTO Output* |
35 hp |
|
Cut Height Range |
10-100mm (3/8″ – 4″) |
Workrate (6 kph) |
2.83 hectares/hr |
|
Transport Height |
1.82m (5′ 11 1/2″) |
Warranty (Years) |
3 |
|
Transport Width |
2.1m (6′ 10 1/2″) |
|
|
|
Cutting Width |
3.99m (13′ 1″) |
No. Of Blade Spindles |
11 |
|
Overall Width |
4.11m (13′ 6″) |
Approx. Weight |
1390kg (3064lbs) |
|
Overall Length |
3.5m (11′ 6″) |
Minimum PTO Output* |
45 hp |
|
Cut Height Range |
10-100mm (3/8″ – 4″) |
Workrate (6 kph) |
2.83 hectares/hr |
|
Transport Height |
2.21m (7′ 3 1/2″) |
Warranty (Years) |
3 |
|
Transport Width |
2.14m (7′ 1/4″) |
